Quick Details

  • Condition: New
  • Type: Hollow Block Making Machine
  • Brick Raw Material: soil, sand, stone, cement, concrete
  • Processing: Brick Molding Machine
  • Method: vibration forming
  • Automatic: Yes
  • Capacity: 2240-3600 pcs / 8 hours
  • Place of Origin: Shandong, China (Mainland)
  • Brand Name: YLF Machine
  • Model Number: YLF40-1
  • Voltage: Adjustable
  • Power: 17.4kw
  • Dimension(L*W*H): 1350*1460*1800mm
  • Certification: CE/SGS/ISO9001
  • Warranty: 1 Year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Weight: 2500kgs
  • Color: Optional
  • Viberation force: 30KN
  • Block Type: Hollow Concrete Brick Machine
  • Molding cycle: 30S
  • Heat treatment: carburizing treatment
  • Name: manual concrete brick making machine
  • Personnel requirement: 2-3 workers
  • products shape: Optional
  • Pallet: yes

Packaging & Delivery

Packaging Details wooden box package
Delivery Time 15-30 days after receipt of the deposit
Product Description


YLF40-1 concrete block machine is composed of host machine,Concrete mixer, conveyer belt.It is a manual block macking machine.you just need to pull the handle of machine,then raw material can be translated to the hopper,
then to the mould.it's very easy to operate. and it  can save labor cost.It have followling features:

1)The mould adopts precise wire cuttiong technology to reduce error and carburzing heat treatment technology to prolong its sergvice life.
2)YLF40-1 use three vibration system,which is can keep better quality with low-power,add one motor,8.8KW in total.
3)Guide pillar can keep machine move more easy and special structure can give products more pressure when vibrating
4)We use control box to operate machine,it’s let our machine much more easy to use
5)YLF40-1 can produce many kinds of interlocking blocks just by changing the moulds.
Main technical parameters
Dimension of host machine
1350*1460*1800mm
Host machine power
8.8KW
Viberation force
30KN
Total machine power
17.4KW
Mould period
30S
Mixer model
JQ350
The size of the pallet
850*450*30mm
Weight of host machine
2.5T
Theoretical production capacity
Size(L*W*H)
Pcs/Mould
Pcs/Hr
Pcs/8Hr
400*150*200mm
5
360-450
2880-3600
400*200*200mm
4
280-360
2240-2800
400x100x200mm
7
500-630
4000-5040
400x250x200mm
3
220-270
1760-2160
Whole Line Detail

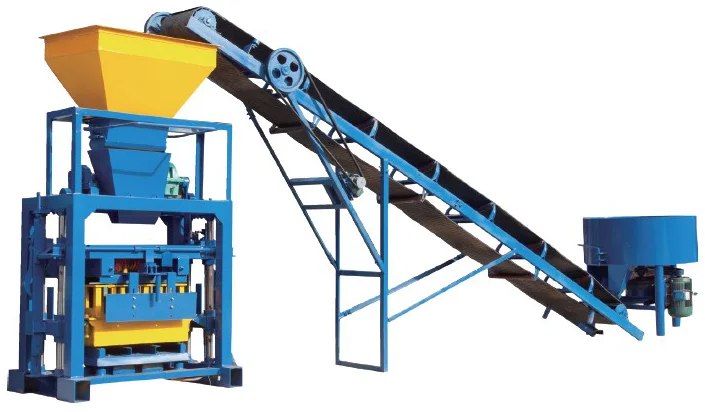

Whole Production Line of YLF40-1

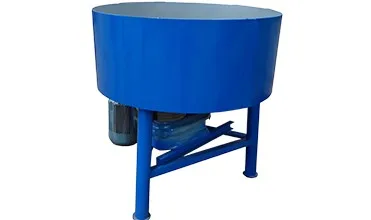

Concrete Mixer

Overall size:                       1200(h)*1200(dia)mm
Feeding Capacity:              560L
Discharging volume:           350L
Productivity:                        ≥7m³/h
Motor Power:                       7.5KW
Rated Voltage:                     Adapt to local voltage
Total Weight:                        330kgs

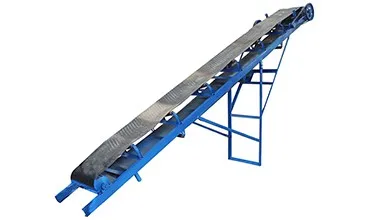

Conveyer Belt

Width :                                  600mm
Thickness:                            8.6mm
conveyor belt Length:          6000mm
Motor Power:                       1.1kw

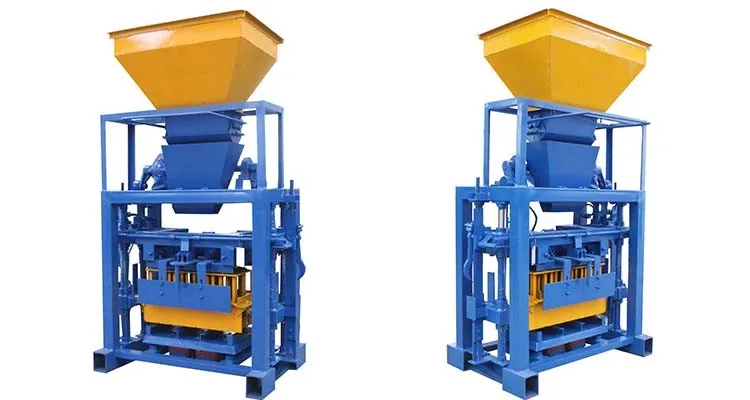

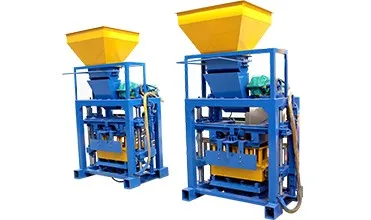

YLF40-1 Block Machine

Dimension:                         1350*1460*1800mm

Host machine power:          8.8KW

Viberation force:                 30KN

Mould period :                     30S

The size of the pallet:         850*450*30mm

Weight of host machine:      2.5T

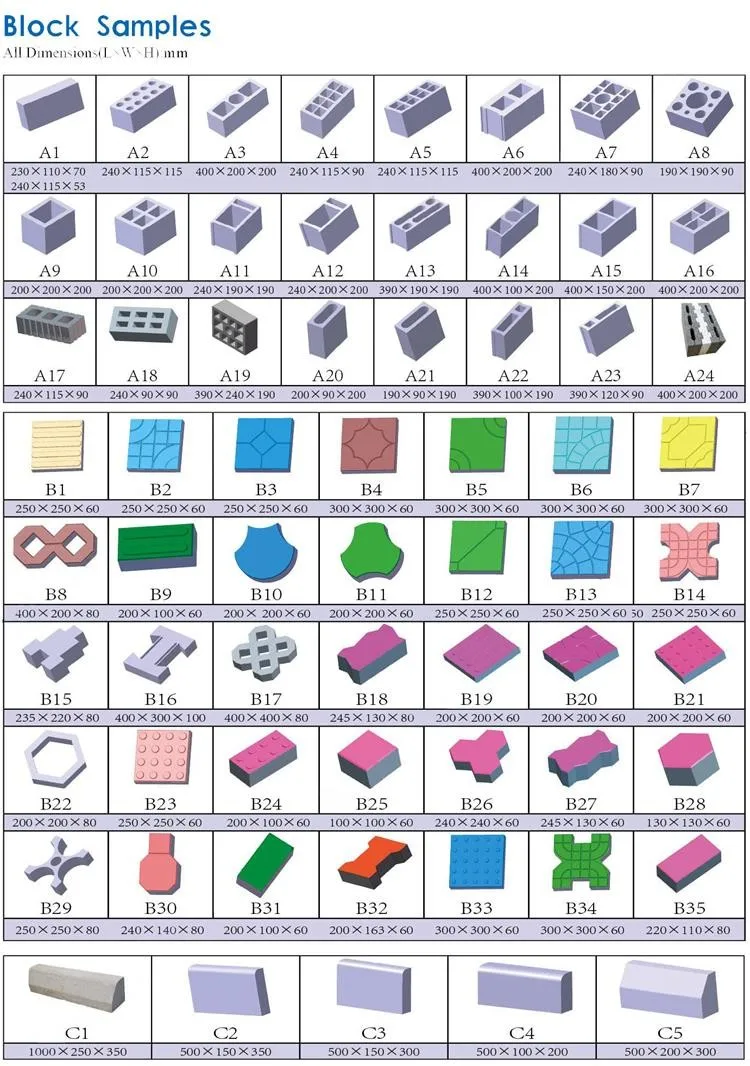

Product Sample
YLF40-1 Manual concrete block making machine can produce many kinds of hollow bricks ,solid bricks and paver just by changing the mould.
Packing & Delivery

Shipment : 10-30days after receive the receipt of deposit

Supports various modes of transportation

Our Service

Pre-sales Service
(1) Professional suggestions (raw material matching, machine selection, the condition of building factory,

 feasibility analysis for brick machine production line)
(2) Device model choice (recommend the best machine according to the raw material, capacity and the size of brick)
(3) 24 hours on-line service
(4) Welcome to visit our factory and production line anytime.
(5) Introduce the company file, product categories and production process.
(6)Sample testing support.


Sale:
(1) Update the production scheduling in time
(2) Quality supervision
(3) Product acceptance
(4) Shipping on time

After-sale:
(1) Training how to instal the machine, training how to use the machine.
(2)  Engineers available to service machinery overseas.
(3) Recall clients regularly ,get feedback in time,keep well communication with each other

Factory & Customers
FAQ

Q1: What is the Warranty for the machine?

A1: For the machine,we have 1 years warranty.


Q2: What kinds of payment methods can be accept?
A2: Payment: T/T, Western Union, MoneyGram,PayPal; 30% deposits; 70% balance before delivery


Q3:Can I visit your factory?

A3: Yes. Many customers visit our factory every year.


Q4:Who arrange shipping?
A4:We will arrange shipping for you if you don’t have special requirement


Q5:Do you provide after-sale service?

A5:Yes. We have a professional after-sale service team to promptly and thoroughly solve your problems.
